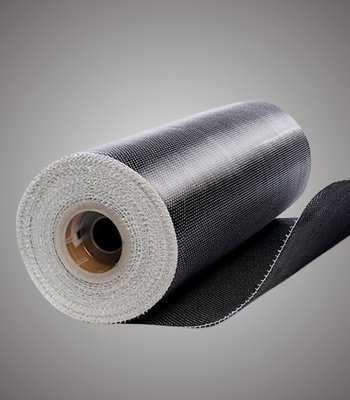

BS-CN Carbon Fiber Fabric
"A unidirectional BS-CN fiber fabric is designed for field lamination with BS-ER 180 epoxy adhesive. This combination creates the carbon fiber-reinforced polymer (CFRP) composite. The composite is used for various structural purposes, including concrete repair, structural reinforcement, and strengthening concrete and masonry structures."
Advantages of BS-CN CFRP wrap strengthening
- Light weight, easy to installation and little increasing the weight on constructed based materials.
- Soft, free to cut, is suitable for a variety of shapes structures, and have close adhesion with reinforced concrete surface.
- The thickness is small, so it is easy to overlap.
- High tensile strength, high flexibility, and have the same effect as to use steel plate reinforcement.
- Anti-acid and alkali, corrosion resistance, and can be used in any harsh environment.
- The supporting epoxy resin impregnated adhesive (recommended our company matchingepoxy adhesive)have good permeability, the construction is simple and time required is short.
- Non-toxic, non-irritating odor, living still in construction.
- Carbon fiber fabrics has high tensile strength, which is equivalent 10-15 times to ordinary steel.
Technical Data
| Typical Dry Fiber Properties | ||
|---|---|---|
| Property | Method | Typical Test Value |
| Tensile Strength | ASTM D-2343-85 | 4.2 Gpa |
| Tensile Modulus | ASTM D-2343-85 | 240 Gpa |
| Ultimate Elongation % | ASTM D-2343-85 | 1.7 |
| Density | ASTM D-3317 /D1505 | 1.74 g/cm |
| Product composition | |||||
|---|---|---|---|---|---|
| Fabric Type | BS-CN200 | BS-CN300 | BS-CN400 | BS-CN600 | BS-CN900 |
| Carbon in 0 deg (GSM) | 200 | 300 | 400 | 600 | 900 |
| Glass in 90 deg (GSM) | 10 | 10 | 10 | 10 | 10 |
| Dry Thickness (mm) | 0.11 | 0.17 | 0.22 | 0.33 | 0.54 |
| Roll Width (mm) | 300-500 | ||||
| Roll Length (m) | 50-100 | ||||
DESIGN:
BS-CN carbon fiber fabric wrapping design must be designed by a design professional. The number of layers, dimensions, and detailing of BS-CN shall be designed in accordance with recognized design guidelines/codes. This ensures meeting the design performance specified for the application. For expert design and technical support, contact Blitzstrength Construction Solutions Pvt. Ltd.
APPLICATION:
1.For surface preparation remove the coating of concrete surface with grinder. Polishing the Surface. If there is angular, grinder it into round.
2.Get the concrete surface clean and keep it dry, then setting out
3.Apply epoxy putty (BS-PT 120) for repairing and leveling if needed.
4.Apply epoxy primer (BS-ER 120) onto the surface of the concrete.
5.Cut the carbon fiber fabric into sizes as designed.
6. Weight and mixing adhesive according to ratio. Stirring the adhesive until the color is even. Avoid air bubble in this process.
7. Apply epoxy adhesive (BS-ER 180) onto the surface of the concrete when primer adhesive is touch dry. (If primer is not required, impregnated adhesive can be applied directly.)
8. Apply carbon fiber fabric onto the concrete surface as designed. Leveling the surface from one end to another
9. Apply epoxy adhesive (BS-ER 180) again. Make sure the adhesive impregnate fully into the fabric. The surface flat and no air bubble. Repeat above process from cutting carbon fiber if applying two or more layers.
Storage & Handling: Store the material in a cool place away from direct sunlight or any source of ignition and fire. Keep away from the reach of children in a well ventilated place.
Health & Safety Precautions: Wear protective glove, goggles, and nose masks while handling and using the material. In case of splashes on the skin and contact with eyes wash thoroughly with plenty of water. In case of ingestion and inhalation remove the personnel to fresh air. Seek medical advice in all the above cases. The disposal of excess or spilled material shall be carried out in accordance with local regulations.
Disclaimer:This information given in good faith and to best of our knowledge is based on results gained from experience and tests. Whereas BLITZSTRENGTH CONSTRUCTION SOLUTIONS PVT. LTD. (BCS) endeavors to ensure that any advice, recommendation specification or information it may give is accurate and correct, it can not accept any liability arising from the use of products since the conditions of use are beyond its control whether or not in accordance with any advice specifications, recommendation or information given by it.
