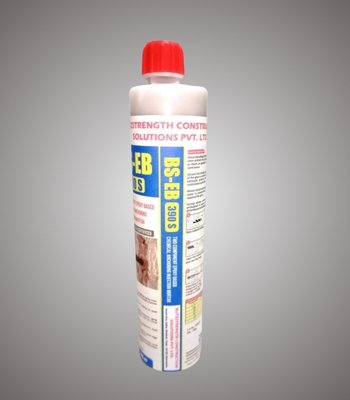

BS-EP 390S Epoxy Injectable Adhesive
BS-EP-INJECT 100 is a low viscosity epoxy resin with high-performance, high precision, pourable, and solvent free moisture-tolerant epoxy grout which develops high early strength. Due to its low viscosity, cracks & honeycombs in concrete are filled upto maximun possible depth of concrete.It is suitable for many static or dynamic precision grouting applications.
Advantages of BS-EP 390S EPOXY ADHESIVE
- Modified epoxy resin, no styrene
- High strength&modulus,good toughness
- Ageing, heat resistance
- Moisture tolerant, long term load stability in a damp environment
- Acid&alkali,seismic resistance, no expansion
- Excellent thixotropy, especially suitable for anchoring the side or top
- Binocular straight mixed package, with special glue gun without prepare manually
SUITABLE FOR
- Planting steel bars and bolts in concrete structure
- Curtain wall & stone dry hanging brackets' reinforcement
- Building structure reinforcement&framework anchoring
- Various equipments' basic fixation
- Steel structures and concrete structures anchoring connection
- Reinforcement for highway, bridges, water conservancy projects rebuilding
- Reinforcement for advertisement boards,the noise barriers&barricades
Technical Data
| Colour | Red or Grey |
|---|---|
| Mixture ratio | 3:1 |
| Volume | 700 gm or 390ml |
| Viscosity of Mixture | 18-22PaS |
| Splitting tensile strength | =8.5MPa |
| Bending strength | =50MPa |
| Compressive strength | =60MPa |
| Thixotopy index | =4.0 |
| Distortion temperature | =650C |
| Steel-steel tensile shear strength | =16MPa |
| C30,φ25, L=150mm condition tensile strength | =11MPa |
| C30,φ25, L=125mm condition bonding strength | =17MPa |
| Steel-steel T impact stripping length | =25mm |
