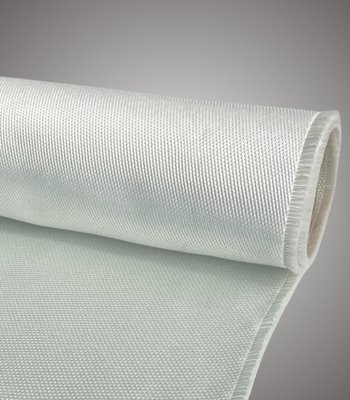

BS-G600 Glass Fiber Fabric Supplier in Mumbai
"A unidirectional BS-G600 Glass Fiber Fabric Supplier in Mulund West, Mumbai is designed for field lamination with BS-ER 180 epoxy adhesive. Glass fibres are used as reinforcement of polymers in various fields such as aerospace, automobile, marine, sporting and leisure goods, and construction and civil engineering. One of the principal advantages of using glass fibres for reinforcement of polymers is their high performance per cost ratio”.
Advantages of BS-G600 Glass Fiber Fabric Supplier in Mulund West, Mumbai
- Product Code: BS-G600
- Fabric Weight: 600gsm
- Fabric Weave: Unidirectional
- Fabric Width: 0.5mtr
- Roll Length: 50mtr
- Appearance: white
Typical Dry Fiber Properties
| Tensile Strength | 0.36N/tex |
|---|---|
| Fiber diameter | 24µm |
| Roving density | 4783 tex |
| Loss on ignition | 0.43% |
| Moisture content | 0.01% |
Laminate Properties
| Tensile strength | 1800MPa | ASTM D-3039 |
|---|---|---|
| Tensile modulus | 7.5×10 | ASTM D-3039 |
| Longation | 2.3% | ASTM D-303 |
| Consumption | Dry application
|
|---|---|
| Substrate quality | specific requirements |
Application Instructions
Application Method The fabric can be cut with special scissors or razor knife. Never fold the fabric!
Notes On Application
This product may only be used by experienced professionals. Minimum radius required for application around corners is>20mm. Grinding edges may be necessary. In fiber direction, overlapping of the fabric must be at least 100mm. For side-by-side application, no overlapping length in the weft direction is required. Overlaps of additional layers must be distributed over the column circumference. The strengthening application is inherently structural and great care must be taken when choosing suitably experienced contractors.
Health and Safety
For information and advice on the safe handling, storage and disposal of chemical products, users should refer to the most recent
Information
Material Safety Data Sheet (available upon request) containing physical, ecological, toxicological and other safety-related data.
